Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones

Radio Control Style : RC Model

Frequency : 480MHZ

PWM out : 14

Brand Name : CUAV

compatible brand : Others, CUAV

private mold : Yes

Power interface : 2(one for I2C one for analog)

Processor : STM32F765

I2C : 4

Material : Metal

RAM : 1024K

MOQ : 2 pieces

Place of Origin : Guangdong,China

Flash : 2048K

ADC_IN : 2

Type : Helicopter

Price : $196-221 / piece

Contact Now

Product Description
Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones
Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones
Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones
Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones
Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones
Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones
Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones
Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones
Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones
Original CUAV X7+ Drone Ardupilot Boat Flight Controller Open Source Marine Ardupilot for Agricultural Drones
Main Parameter
Processor

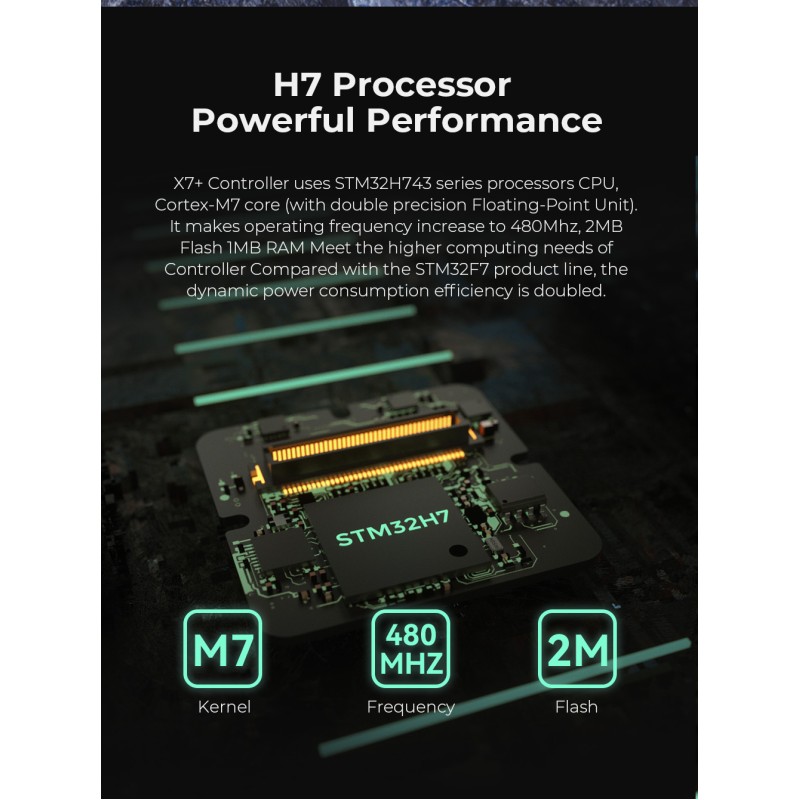

STM32H743(Arm Cortex -M7,480MHz, 2MB FLASH, 1MB RAM)
Sensors
Accelerometer
ICM-42688-P / ICM-20689 / ICM-20689
Gyroscope
ICM-42688-P / ICM-20689 / ICM-20689
Compass
RM3100
Barometer
MS5611 *2
Interfaces
UART
5
I2C
6 (2 interfaces are integrated in GPS&SAFETY&UART4)
PWM OUT
14 ( M1~M12 Support DSHOT protocol)
RC IN
1 (Support PPM SBUS DSM)
RSSI
PWM or 3.3V analog voltage
CAN
2
Power IN
2 (Power A for ADC protocol, Power C for CAN protocol)
Safety Switch
1
GPS
2
ADC
1
DEBUG
1
JATG
1
USB
1
Rated Voltage
4.5 ~ 5.5 V
USB Voltage
4.75 ~ 5.25 V
Servo Voltage
0 ~ 10 V
Working Temp
-20 ~ 85 ℃
Humidity
5% ~ 95%(Does not condense)
Size
77.0 × 45.5 × 39.0mm
Weight
101g
