cuav c-rtk 2 gnss navigation muti-frequency ppk drone kit for pixhawk fixed wing vtol

Name: cuav crtk 2 gnss navigation mutifrequency ppk drone kit for pixhawk fixed wing vtol
Brand: CUAV
Price: 500 USD

Buy cheap cuav c-rtk 2 gnss navigation muti-frequency ppk drone kit for pixhawk fixed wing vtol product

Radio Control Style : RC Hobby

Name : C-RTK 2

Place of Origin : China, Guangdong China

compatible brand : Others

IMU : Build in high precision IMU

Protocol : Supports UAVCAN Protocol

Material : Metal

Processor : H7

Price : $500-522 / piece

private mold : Yes

Supports 2 : Hotshoe Trigger

MOQ : 1 piece

Support 1 : Supports both RTK and PPK

Frequency : Muti -star Muti-frequency

Brand Name : CUAV

Data interface : USBX1UART X2

Contact Now

Product Features
compatible brand	Others, CUAV
Processor	H7
Support 1	Supports both RTK and PPK
Material	Metal
place of origin	Guangdong, China
Radio Control Style	RC Hobby
Supports 2	Hotshoe Trigger
Name	C-RTK 2
IMU	Build in high precision IMU
brand name	CUAV
private mold	Yes
Frequency	Muti -star Muti-frequency
Data interface	USBX1,UART X2
Protocol	Supports UAVCAN Protocol

CUAV C-RTK 2 GNSS Navigation Muti-frequency PPK Drone PPK Kit for Pixhawk Fixed Wing VTOL

Product Description

cuav c-rtk 2 gnss navigation muti-frequency ppk drone kit for pixhawk fixed wing vtol

C-RTK 2 PPK Module Feature:
          -- Support RTK & PPK simultaneously
-- Support hotshoe trigger
-- Multi-satellite multi-frequency receiver
-- 25Hz raw data record


Introduction:

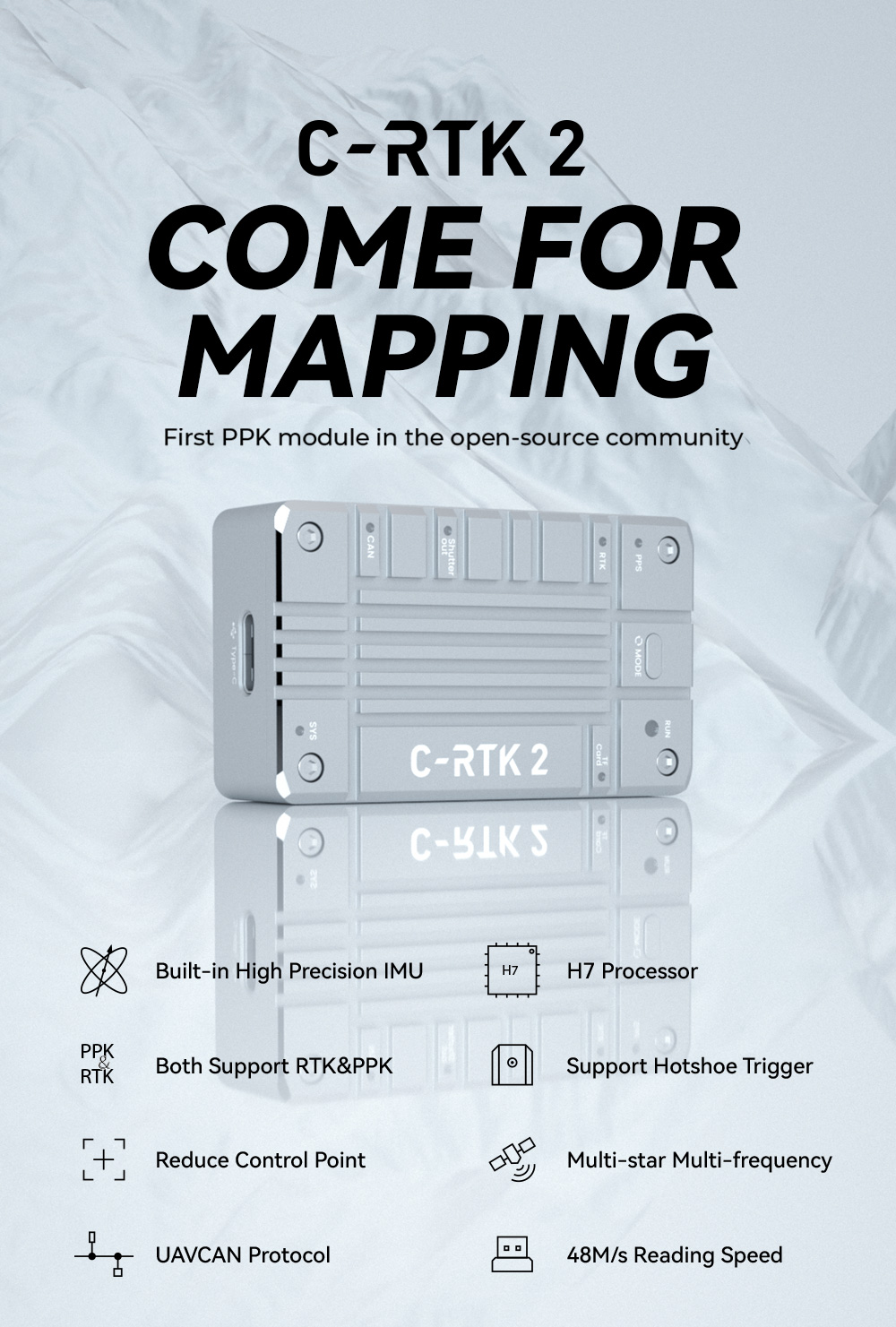

          C-RTK 2 is a high-performance PPK/RTK positioning module created by CUAV for professional application fields such as
Unmanned System saerial survey. It integrates light appearance, industrial grade IMU, multi-satellite and multi-frequency
satellite receiver, supports both RTK centimeter-level positioning navigation and RAW data recording for post-differential
calculation. Supports shutter triggering and hotshoe synchronization. It adopts CAN bus protocol and is compatible with PX4/ ArduPilot open-source controller. It can be applied to various specifications of multi-rotors, helicopters and other industrial use Unmanned Systems.


Product Parameters
Receiver	ZED-F9P
Channel	184
Processor	STM32H743VIH6(ArmCortex- M7,480MHz,2MB FLASH,1MB RAM)
FLASH	2M
RAM	1M

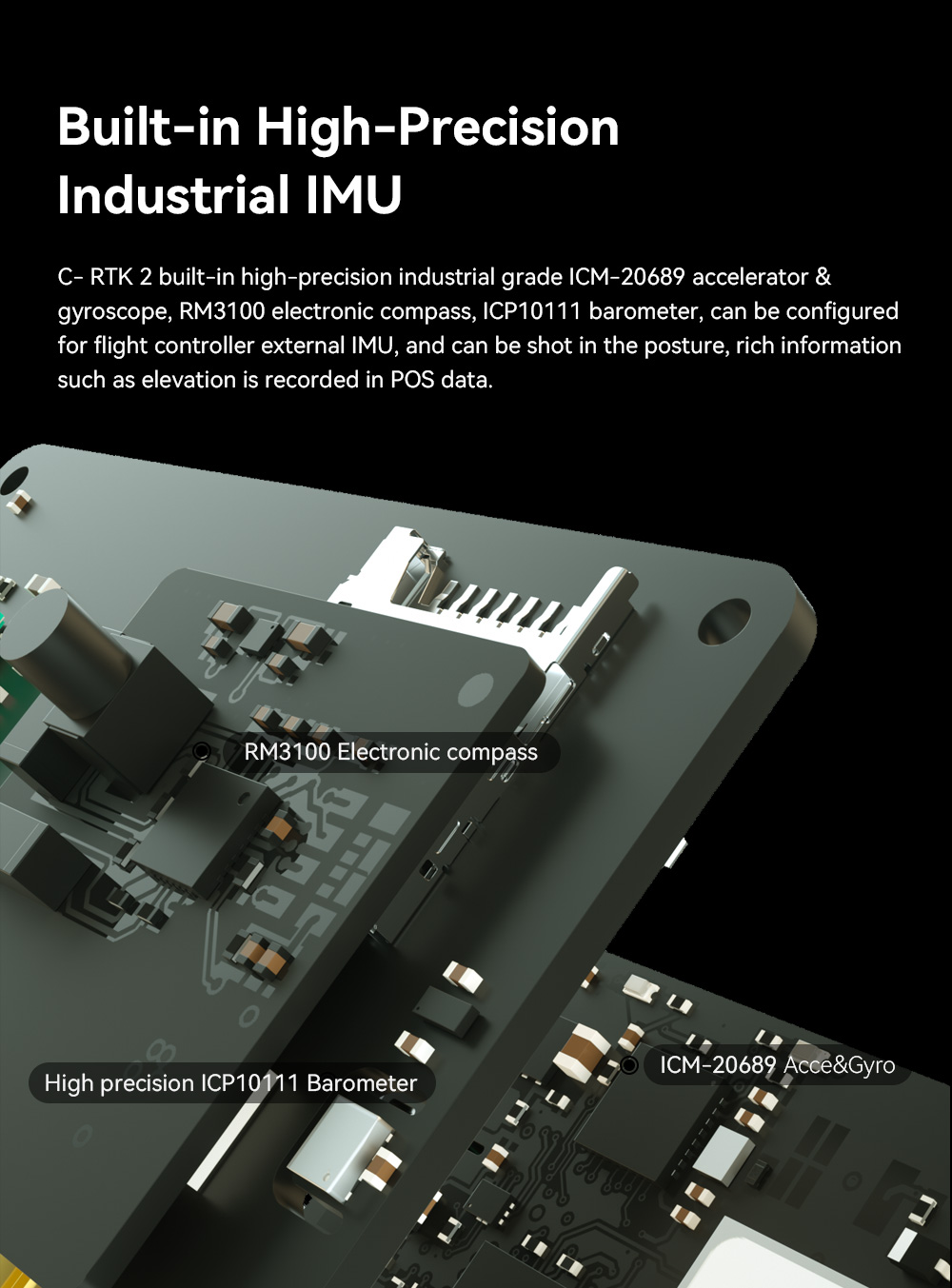

Acce&Gyro	ICM-20689
Compass	RM3100
Barometer	ICP10111
TF Card	32G(Max)
PPK	Support
RTK	Support
GNSSSystem	GPS:L1C/A,L2C GLONASS:L10F,L2OF GALILEO:E1B/C,E5b BDS:B11,B2I
Enhanced System	QZSS:L1C/A,L2C,L1S SBAS:L1C/A
Concurrent GNSS	4
Nav Rate	RTK:20Hz(Max) PPK:25Hz(Max) default:5Hz
Convergence Time	RTK<10s
Accuracy (RMS)	RTKLevel:0.01m 1ppm(RMS) RTKVertical:0.02m 1ppm(RMS) GPS:1.5m(RMS)
Acquisition	Cold start:24s Hot start:1s Reacquisition:2s
Sensitivity	Tracking &Nav:-167dBm Cold start:-148dBm Hot start:-157dBm Reacquisitio:-160dBm
Anti-Spoofing	Advanced anti-spoofing algorithms
Time Pulse	0.25Hz~10Mhz(Configurable)
Anti-Jamming	Active CW detection and removal onboard band pass filter
Controller	Compatible with controllers running ArduPilot/ PX4 firmware
Coordinate System	WGS84
Interface	Hotshoex1; Shutter inx1; Shutter outx1; Type-Cx1; F9P USBx1; UARTx1; CANx1; MMCXAntennax1
DCIN	4.5~6V
Operating Temperature	-20~85°C
Size	56.0x33.0x16.5mm
Weight	39g

FAQ

Q1: Are you a factory or a trading company? What is the minimum order quantity? Yes, we are trading company,have authorized agents for multiple brands direct salesand have some inventory items. You can order 1 piece for testing.

Q2: ls it possible to get a sample?
We offer sample when you pay sample fee.

Q3: How much for the shipping cost?
According to your quantity and country. We are check the freight for you. and choosebest shipping way.

Q4: How long time can iget my package?
Usaually, the ready time is 3-5 days, the shipping time is 3-7 days

Q5: Can you provide OEM&ODM services ?
Of course, including software, packaging, product logos, etc. For more details, pleaseconsult customer service,

Q6: How do you ensure the quality of products?
Our products comply with the 1S09001 quality system and CE/FCC/ROHS standardsAll of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.

Q7:How do you arrange the transportation?
lf the sample order is recommended to be shipped by express delivery (7-10 days) orair freight (10-15 days), and if mass production is recommended, sea freight is morefavorable.Please consult customer
service for more details!

Any other question, please feel free to contact us. Thanks
