RadioMaster Sbus Wireless Trainer Modules Micro Nano 5V SBUS FPV TX Transmitter Connector Long Range Radio for Racing Drone

Name: RadioMaster Sbus Wireless Trainer Modules Micro Nano 5V SBUS FPV TX Transmitter Connector Long Range Radio for Racing Drone
Brand: RadioMaster
Price: 9.80 USD

Buy cheap RadioMaster Sbus Wireless Trainer Modules Micro Nano 5V SBUS FPV TX Transmitter Connector Long Range Radio for Racing Drone product

Brand Name : RadioMaster

compatible brand : FPV Drone

private mold : No

Material : ABS

Place of Origin : Guangdong, China

Price : $9.80-10.50 / piece

MOQ : 2 pieces

Contact Now

Product Description

RadioMaster Sbus Wireless Trainer Modules Micro Nano 5V SBUS FPV TX Transmitter Connector Long Range Radio for Racing Drone

Specification

* Item: RadioMaster Sbus Trainer Modules

* Working Voltage: DC 5.0 - 8.4V

* Receiver Interface Output Voltage: DC 5.0V

* Weight: Micro Module: 25.10g / Nano Module: 18.9g

* Dimensions: Micro: 33*48.7*68mm / Nano: 26.3*71.2*42mm

* Applicable Models: [Micro] TX16S, BOXER [Nano] GX12, Zorro, Pocket, MT12 (Not compatible with TX12MKII)

* Suggested Receivers: RP1, RP2, R81 V2 or any other receiver that supports SBUS output and works with 5V.

The RadioMaster SBUS Wireless Trainer Module offers seamless wireless connectivity between an instructor's and a student's radio, providing a convenient and efficient cable-free training solution. By eliminating the need for traditional trainer cables, this module enhances flexibility and ease during training sessions, while ensuring reliable control and a smoother learning experience.

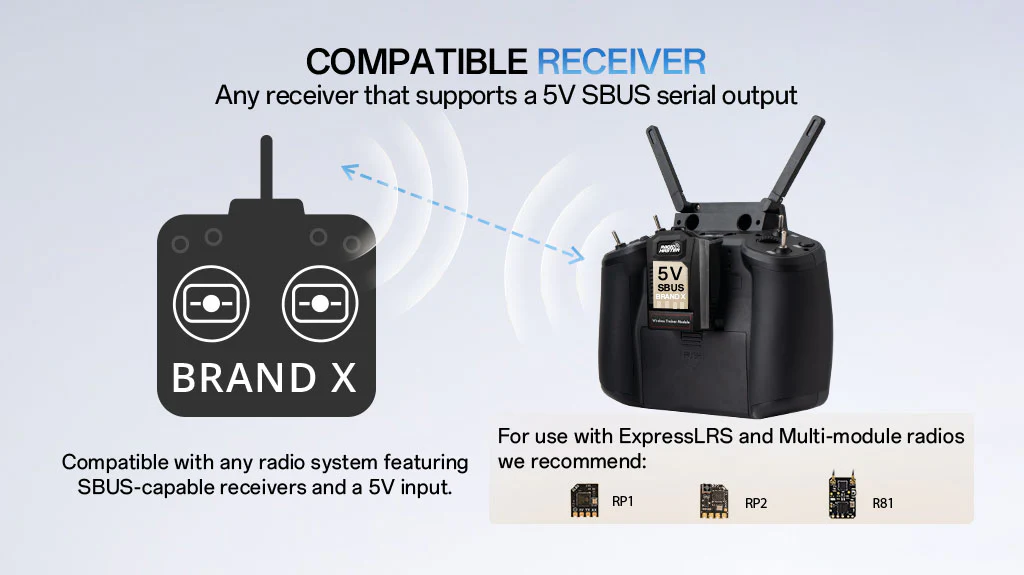

The module is compatible with any receiver that supports a 5V SBUS serial output, making it compatible with a wide variety of radios. This versatility allows for easy pairing with both instructor and student radios, regardless of brand, as long as they meet the required connection specifications.

For student radios equipped with built-in ExpressLRS modules, we recommend pairing them with the RadioMaster RP2 receiver for optimal performance. For radios featuring an internal 4-in-1 multi-protocol module or CC2500 module, the RadioMaster R81 V2 receiver is the ideal choice. Additionally, the Wireless Trainer Module supports any student radio that can connect to a receiver with 5V SBUS serial output, making it a highly versatile solution for a wide range of setups.

Enhance your training sessions with the RadioMaster SBUS Wireless Trainer Module for a more efficient, flexible, and reliable experience.

Features

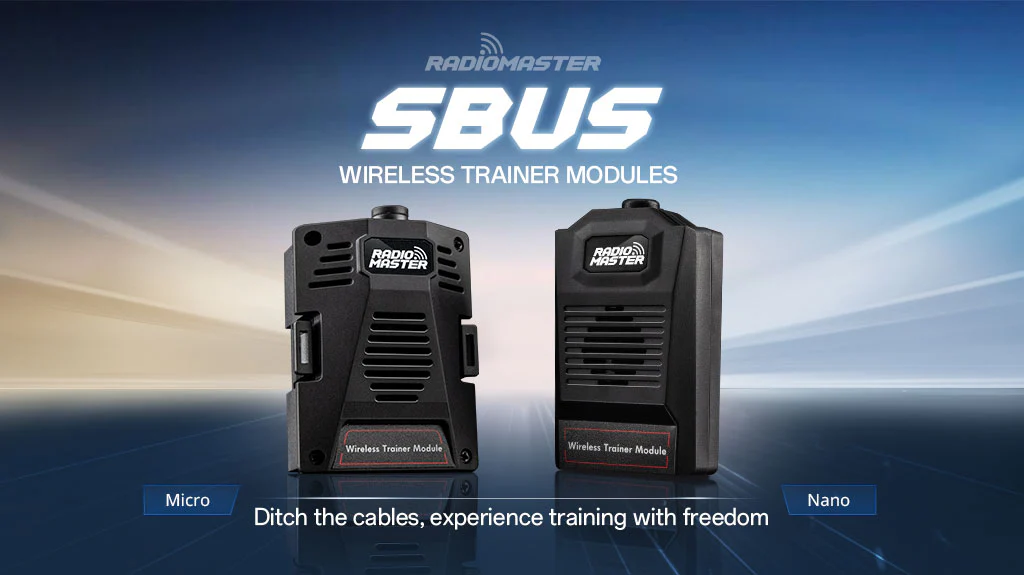

* Compatibility: The micro module is compatible with RadioMaster TX16S and BOXER, while the nano module works with GX12, Zorro, Pocket, MT12, and receivers supporting 5V SBUS serial output.
* Connection Type: Utilizes SBUS for efficient trainer signal transmission.
* Setup: Quick and easy configuration via the trainer menu in EdgeTX.

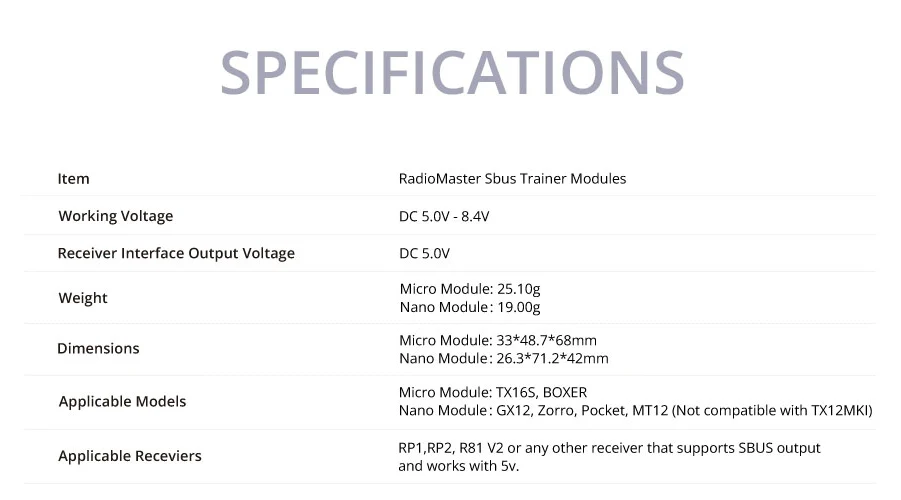

Specification
* Item: RadioMaster Sbus Trainer Modules
* Working Voltage: DC 5.0 - 8.4V
* Receiver Interface Output Voltage: DC 5.0V
* Weight: Micro Module: 25.10g / Nano Module: 18.9g
* Dimensions: Micro: 33*48.7*68mm / Nano: 26.3*71.2*42mm
* Applicable Models: [Micro] TX16S, BOXER [Nano] GX12, Zorro, Pocket, MT12 (Not compatible with TX12MKII)
* Suggested Receivers: RP1, RP2, R81 V2 or any other receiver that supports SBUS output and works with 5V.

Weight

Dimensions

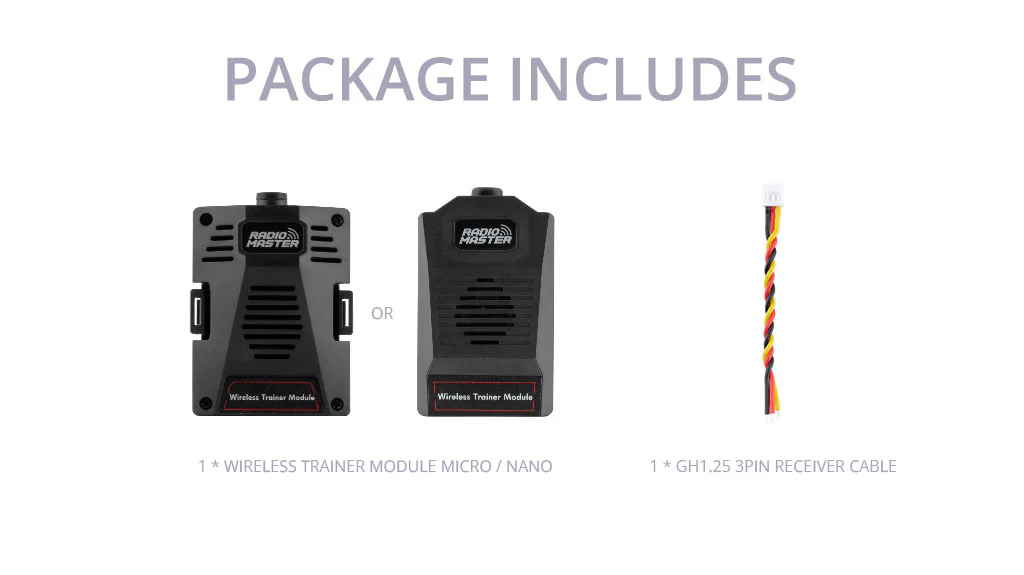

Package Includes

* 1 * Wireless Trainer module Micro/Nano
* 1 * GH1.25 3pin Receiver Cable
