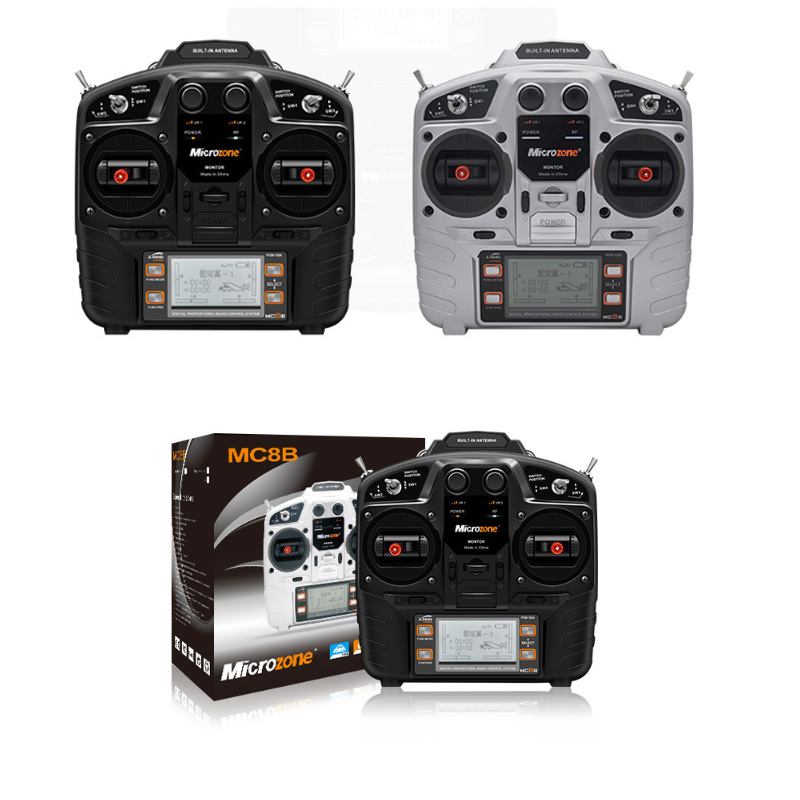

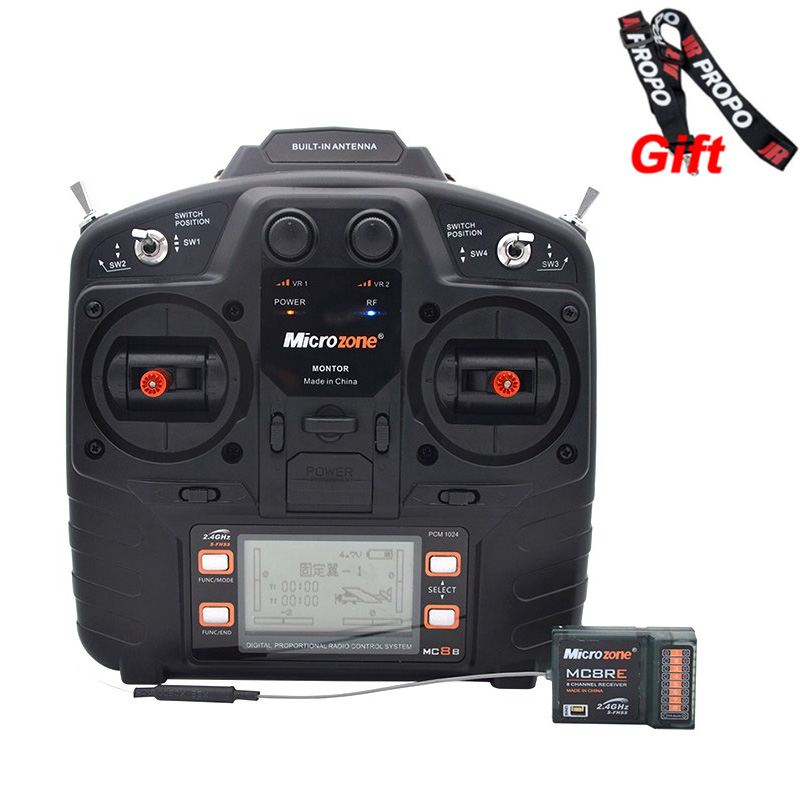

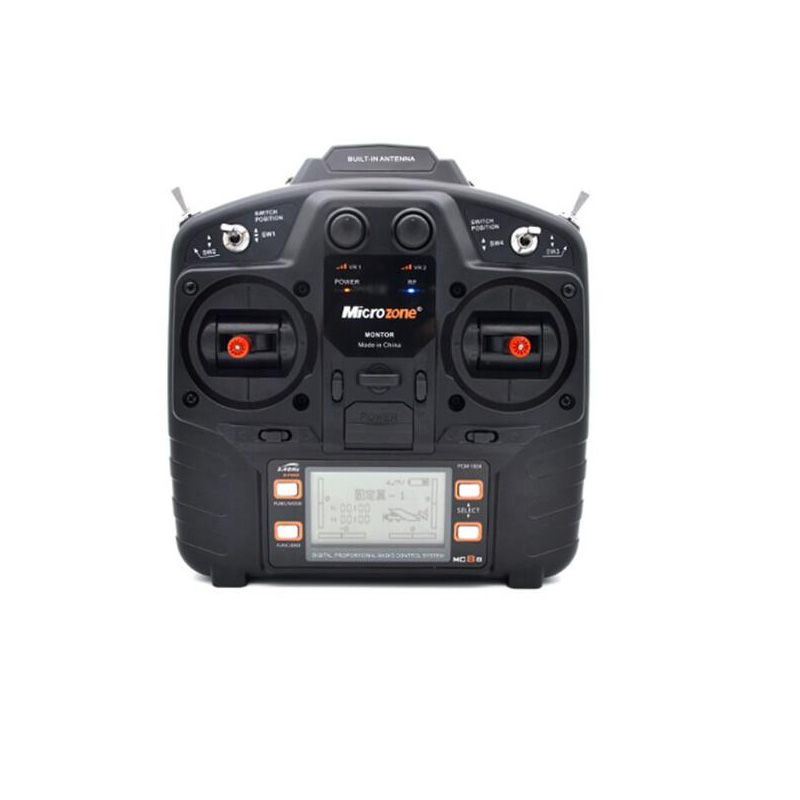

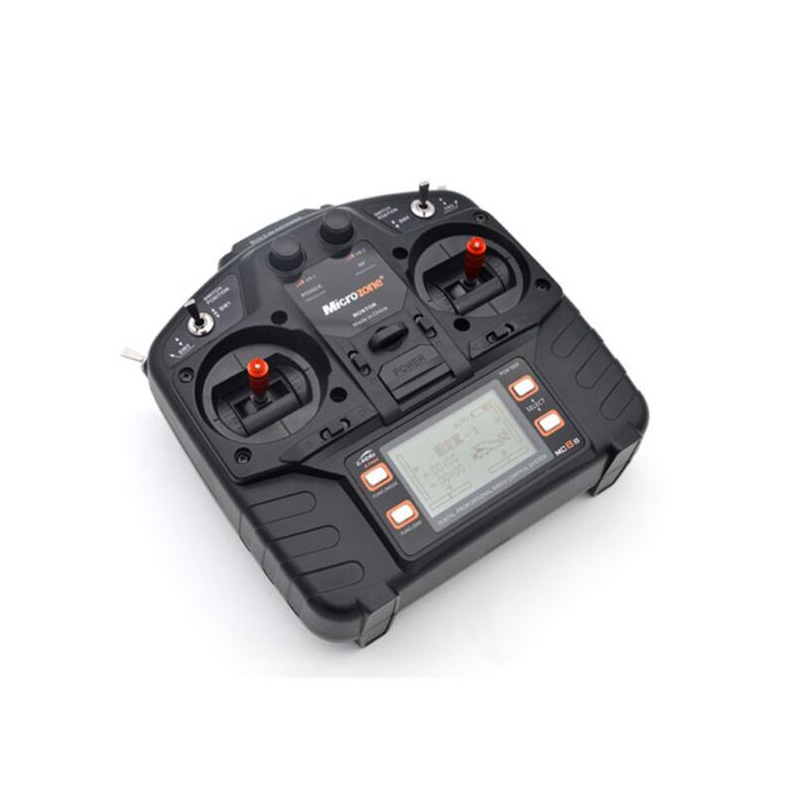

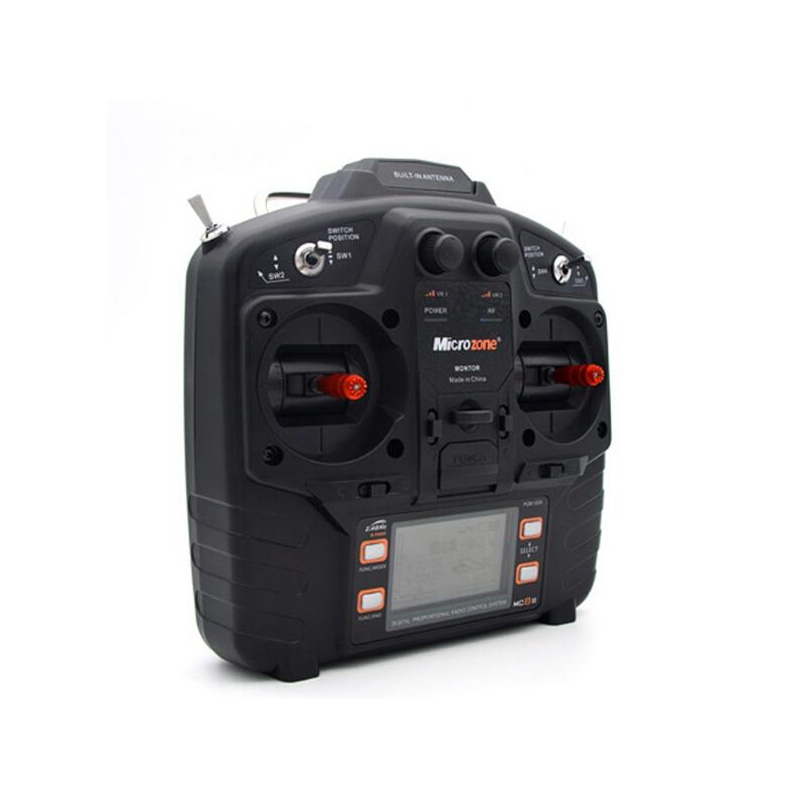

Microzone MC8B 2.4G 8CH Remote Control Transmitter 8RE 8 Receiver Radio System For RC Aircraft Fixed-wing Helicopter

Name: Microzone MC8B 24G 8CH Remote Control Transmitter 8RE 8 Receiver Radio System For RC Aircraft Fixedwing Helicopter
Brand: Microzone
Price: 37.68 USD

Buy cheap Microzone MC8B 2.4G 8CH Remote Control Transmitter 8RE 8 Receiver Radio System For RC Aircraft Fixed-wing Helicopter product

Age Range : 14 Years & up

Brand Name : Microzone

Material : Metal

MOQ : 1 piece

Use : Vehicles & Remote Control Toys

Type : Batteries

Model Number : MC8B

Gender : Unisex

Place of Origin : China, Guangdong China

Size : 22*22*11cm

Price : $37.68 / piece

Contact Now

Product Features
Place of Origin	Guangdong, China
Age Range	14 Years & up
Use	Vehicles & Remote Control Toys
Size	222211cm
Gender	Unisex
Model Number	MC8B

         Microzone MC8B 2.4G 8CH Remote Control Transmitter & MC8RE 8CH Receiver Radio System for RC Aircraft Fixed-wing Helicopter


Product Description

         Low voltage alarm mode: LED indicator and buzzer alarm at the same time. Supply analog and external power, LCD displays Chinese and English menu.
The receiver wide voltage design (DV 2V-9V) supports 8 PWM signals and 1SBUS signals.
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.
The classical neutral knob is fine tuned to facilitate quick switching of the platform and attitude.
The 8 channel full function remote controller is suitable for fixed wing aircraft, helicopters and multi axis aircraft.


Transmitter Specifications:
Channels: 8
Color: Black / silver
Model: fixed wing model airplane, UAV, helicopter, cars, boat.
RF range: 2405MHZ---2479MHZ
RF power: less than 100MW
Working current: less than 150MA
Working voltage: 4.5--8.5V
Modulation mode: FSK
Sensitivity: 1024
Signal output: 8 PWM signals and 1 SBUS signals.
Analog and external power supply (not more than 8V): YES
Low voltage alarm mode: LED indicator and buzzer alarm at the same time (according to battery type in the system).
The LCD Chinese and English menu displays.
Internal software support: CH5---CH8, arbitrary replacement of settings and CH1--CH8 signal detection.
Internal software support: M1 and M2 throttle swap (double return), can set the flight time, the main screen to build a lock, a factory reset.
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.
Power : 6V 1.5AA*4
Adopt the latest FHSS mode in line with European standards.
Certificate: FCC, CE_RED
Size: 215MM*105MM*220MM
Weight (gross weight): 580g

Receiver Specifications:
Product name: MC8RE Receiver
Antenna length: 110mm
Output channel: 8 PWM signal channels and 1 SBUS signal channel
Reception frequency: 2401MHZ-2479MHZ
Application: MC8A, MC8B remote control, fixed wing models, UAV, helicopter models, trams and tanker models, ship models
Size: 42 * 28 * 12mm
Weight: 12g


Microzone MC8B 2.4G 8CH Remote Control Transmitter 8RE 8 Receiver Radio System For RC Aircraft Fixed-wing Helicopter

Packing and Shipping

Always Safe and Fast Shipping with U-angel

We are working with reliable shipping companies, you order will be delivered to your

address on time! We can also ship out the goods to your shipping forwarder in China if requested,we are more flexible! Global Transportation:

We will find out the BEST logistics solutionsfor you!

1. DHL / UPS / FedEx / TNT, Door-to-Door;
2. By Air or by Sea, for FCL; Airport / Port receiving;
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods;
We choose thebest and safe packaging material to make sure your orders won't be damaged during delivery.

Microzone MC8B 2.4G 8CH Remote Control Transmitter 8RE 8 Receiver Radio System For RC Aircraft Fixed-wing Helicopter Images
